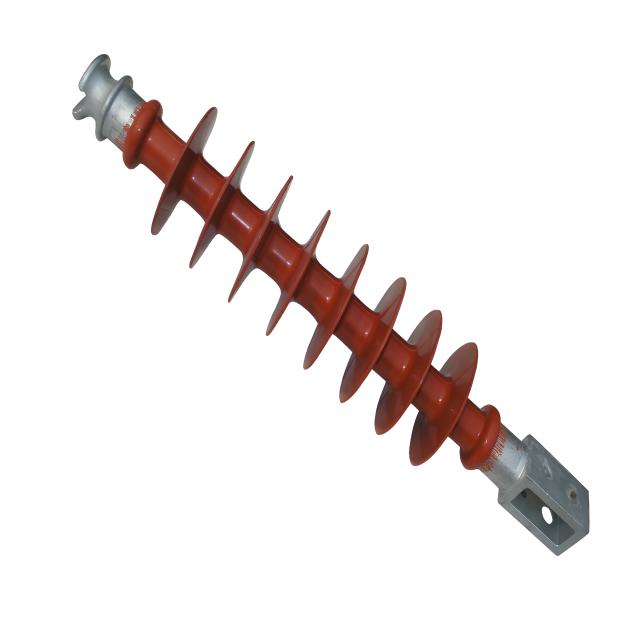

This 35kV insulated cross-arm is engineered for medium-voltage grid applications. Its manufacturing demands precise design, sophisticated technology, and strict quality control, which reflects the high level of the producer. The product complies with relevant IEC standards for post insulators as it is essentially a type of post insulator, yet it has its own particularities. Unlike common post insulators that are usually installed vertically, the insulated cross-arm is installed horizontally or at an angle to the horizontal plane. Therefore, it requires stronger bending resistance and also has a demand for lightweight design.
During operation, it not only insulates the conductors but also withstands various mechanical loads such as those from wind, ice, and the weight of the conductors. The hollow-out cuboid structure helps to optimize the weight without sacrificing strength. The tie-top end fittings enable a firm connection with the conductors.
It exhibits remarkable electrical insulation properties and mechanical durability, can endure different environmental conditions, and is highly valuable in medium-voltage power distribution, especially in areas with complex environmental factors.
Standards:
IEC 61952-1-2019; ANSI C29.18

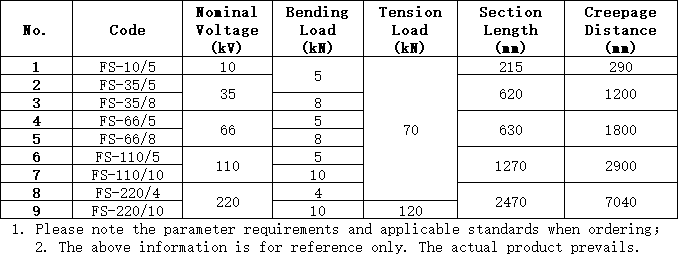

Specifications:
Application:
It is mainly applied on the poles or towers in the power grid, especially in medium-voltage distribution lines. Its main task is to offer stable electrical insulation and mechanical support for the conductors, which is crucial for the reliable operation of the power distribution network and the supply of electricity to end-users.
Features:
● Unwavering Reliability:
Crafted to meet the exacting demands of medium-voltage grids, this system stands as a beacon of stability, operating flawlessly for extended periods. Its robust design ensures minimal maintenance, providing a steadfast guarantee of continuous power distribution. Trust in its enduring performance to keep your grid running smoothly, day in and day out.
● Ingenious Insulation and Mechanical Resilience:
Every detail of its structure and material composition has been meticulously honed to master the dual challenges of medium-voltage insulation and mechanical endurance. Whether facing the relentless pull of horizontal forces or the unpredictable angles of stress within the grid, this system rises to the occasion. It’s a testament to engineering brilliance, ensuring both safety and strength in the face of adversity.
● Defying Environmental Adversity:
From the harshest climates to the most unpredictable weather patterns, this system is your shield against environmental challenges. Designed with foresight and fortified with protective measures, it stands resilient, ensuring the power distribution network remains unscathed and fully operational. No matter where it’s deployed, it adapts and thrives, safeguarding your grid against nature’s whims.
● Versatile and Adaptable Excellence:
In a world of constant change, this system excels with unparalleled adaptability. Whether confronting shifting external forces or evolving environmental conditions, it consistently delivers on its promise of insulation and support for conductors. Its versatility is its strength, making it the ideal choice for diverse operating scenarios. Embrace a solution that not only meets but exceeds expectations, ensuring reliability and performance in every situation.
